Новинка 2022 маршрутизатор 11-го поколения Pentium N6005 4 * Intel i225 Nics NVMe 2 DDR4 5G pfSense

Новинка 2022 маршрутизатор 11-го поколения Pentium N6005 4 * Intel i225 Nics NVMe 2 DDR4 5G pfSense

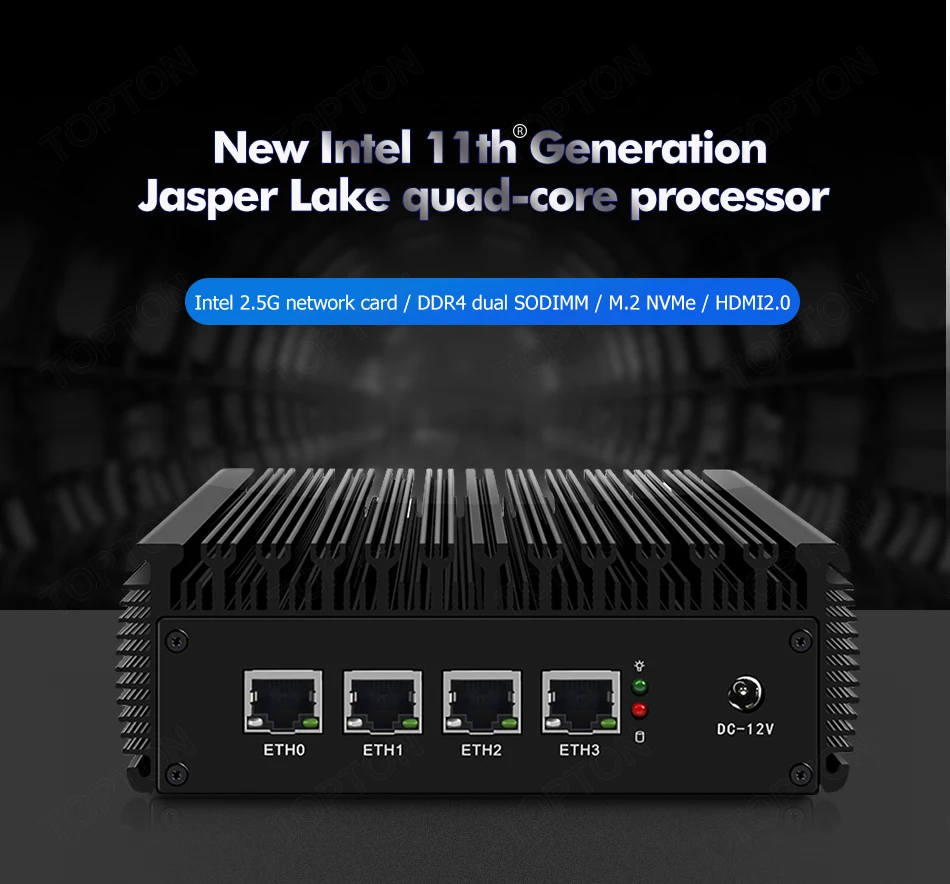

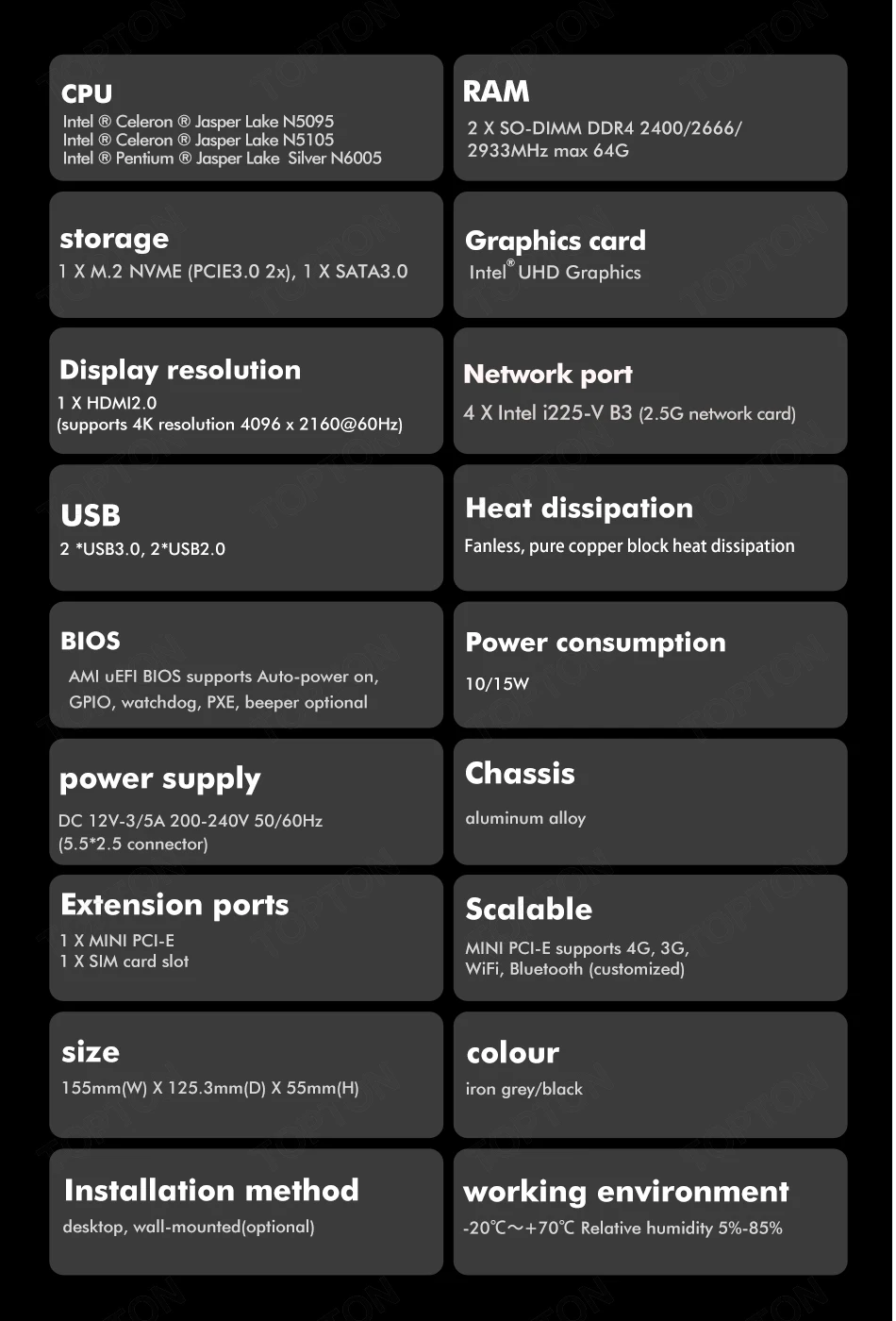

Jasper Lake Intel Celeron N5105 4 cores 4 threads 2.0GHz up to 2.9GHz 4MB cache TDP 10W Intel UHD Graphics 450-800MHz, AES-NI supported.

Product Highlight

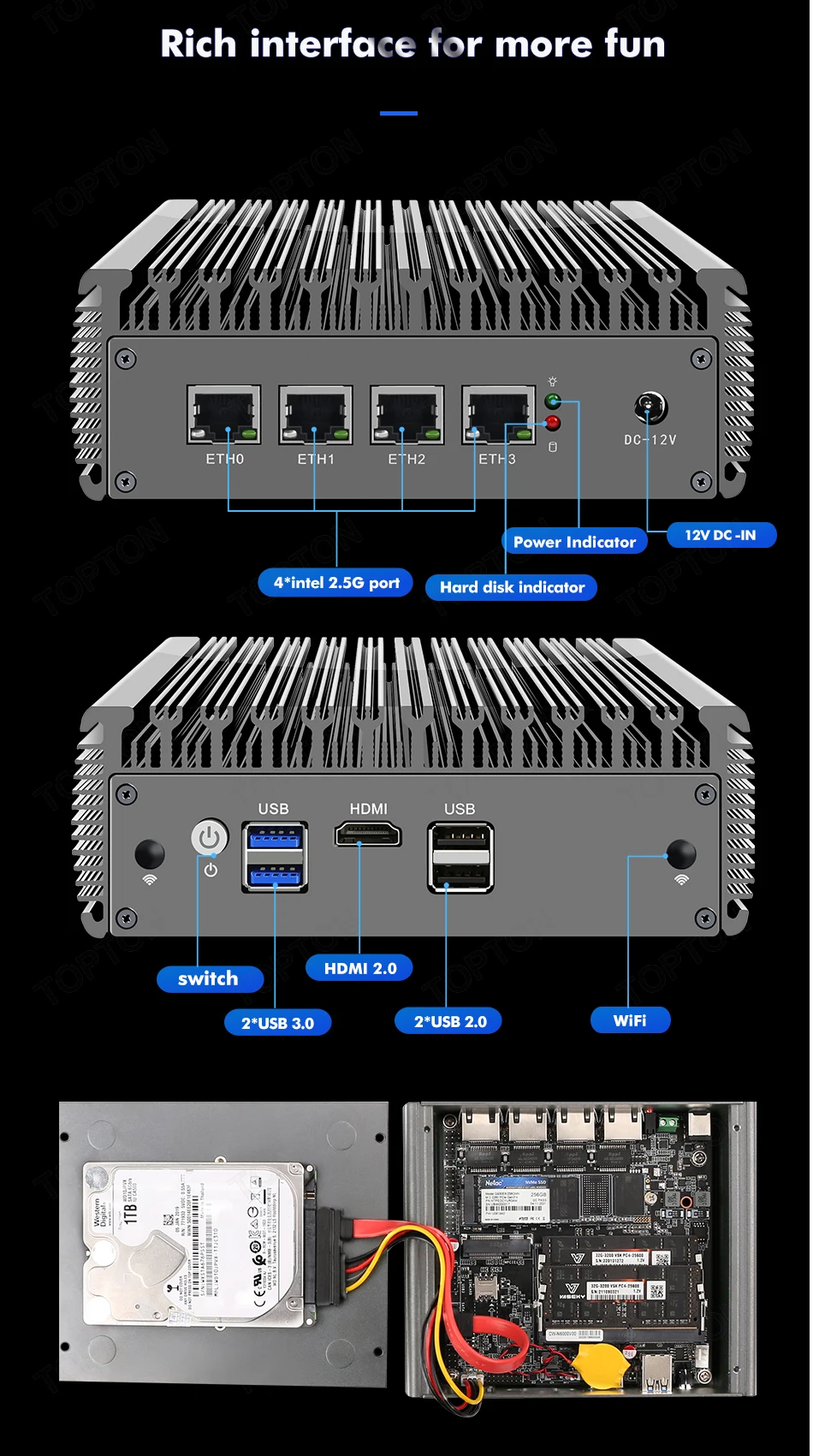

-4xIntel i225-V B3 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM.

-2xDDR4 SODIMM non-ecc ram slot, max support 64GB.

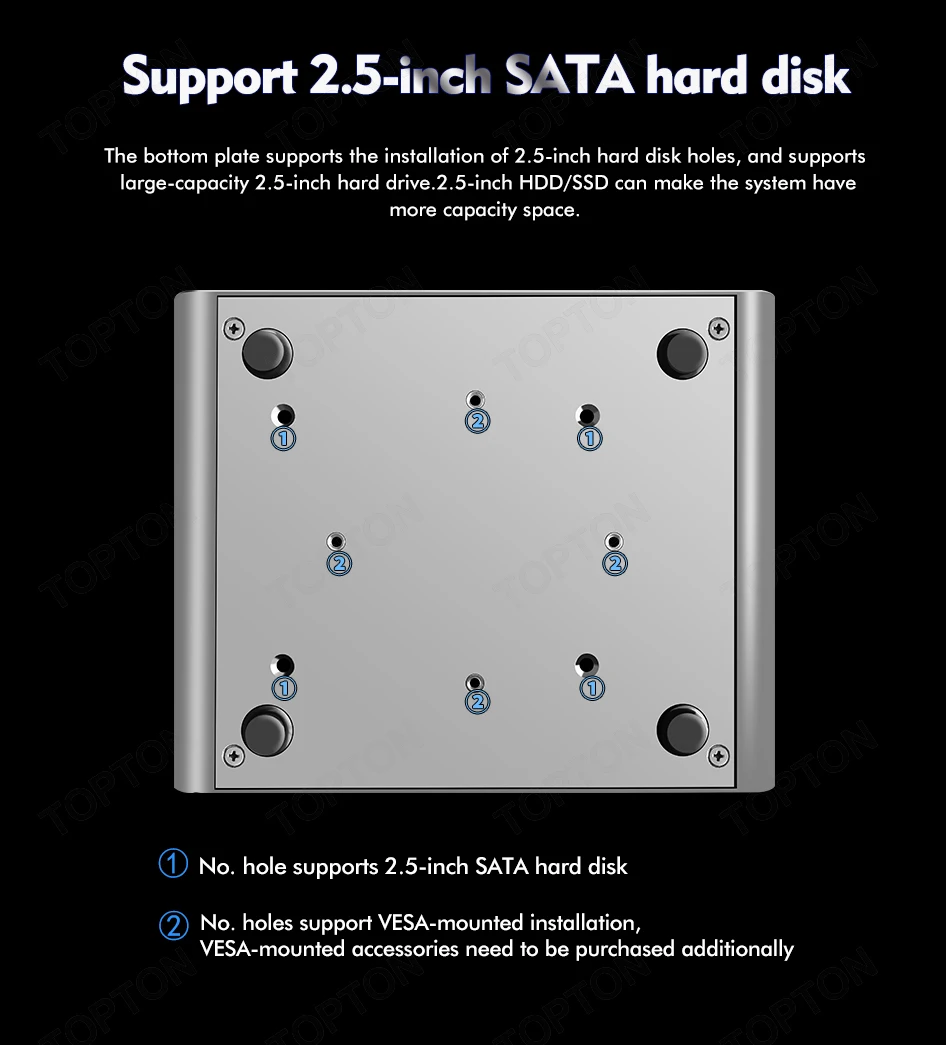

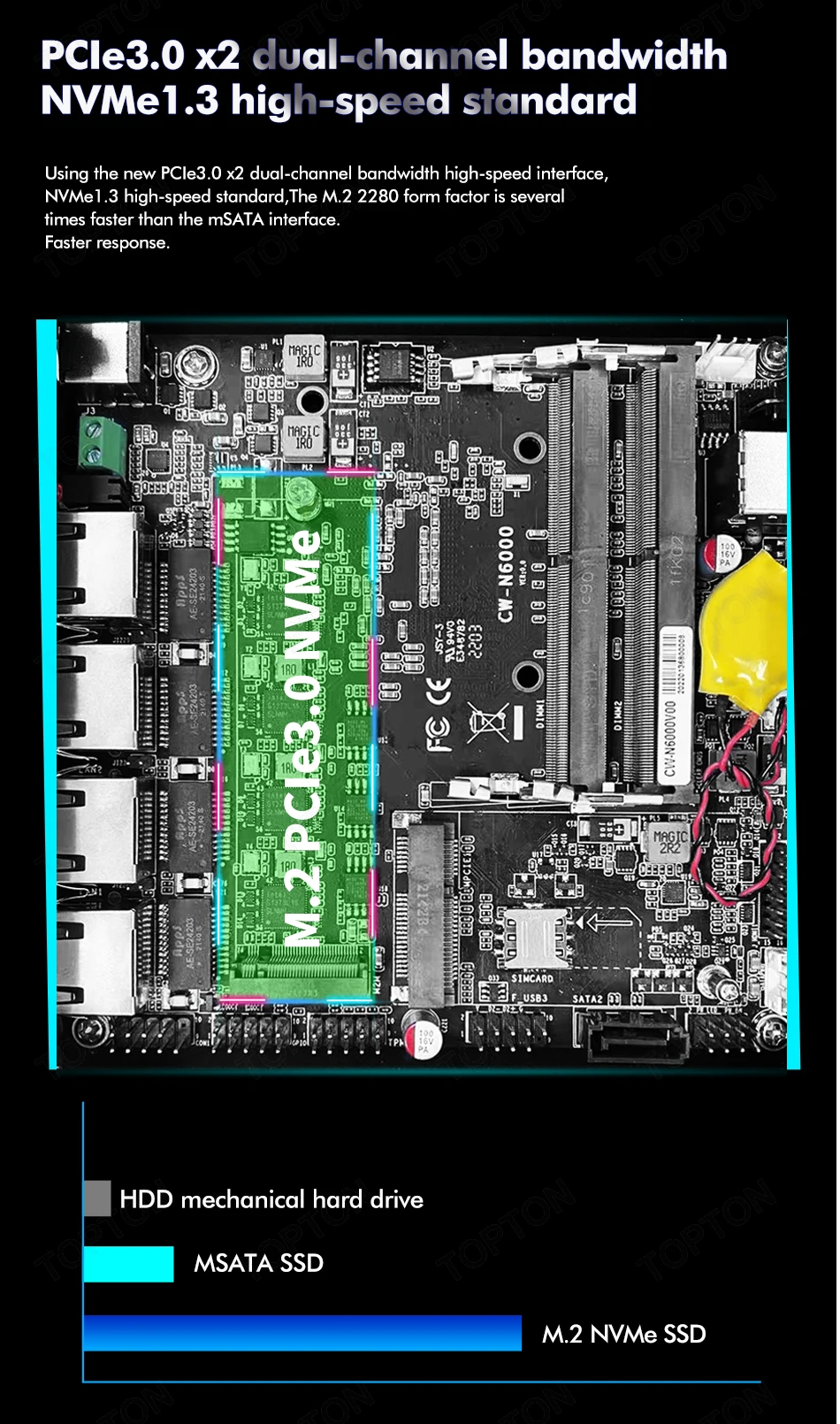

-Support two storage: 1xM.2 2280 NVMe/PCIE3.0x2 SSD+1x2.5''SATA SSD/HDD.

-1xHDMI2.0 support 4K@60Hz UHD video display.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.

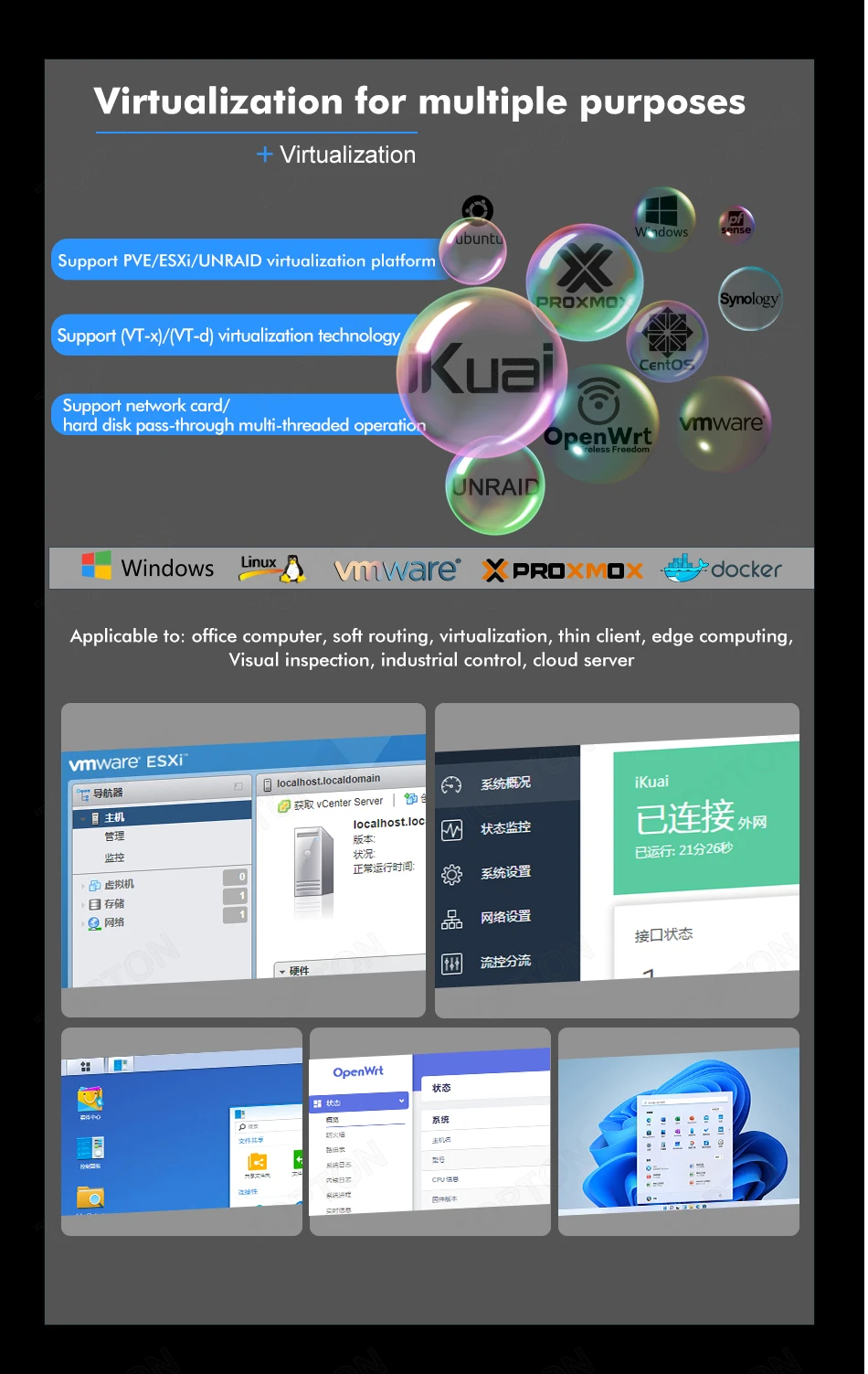

-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

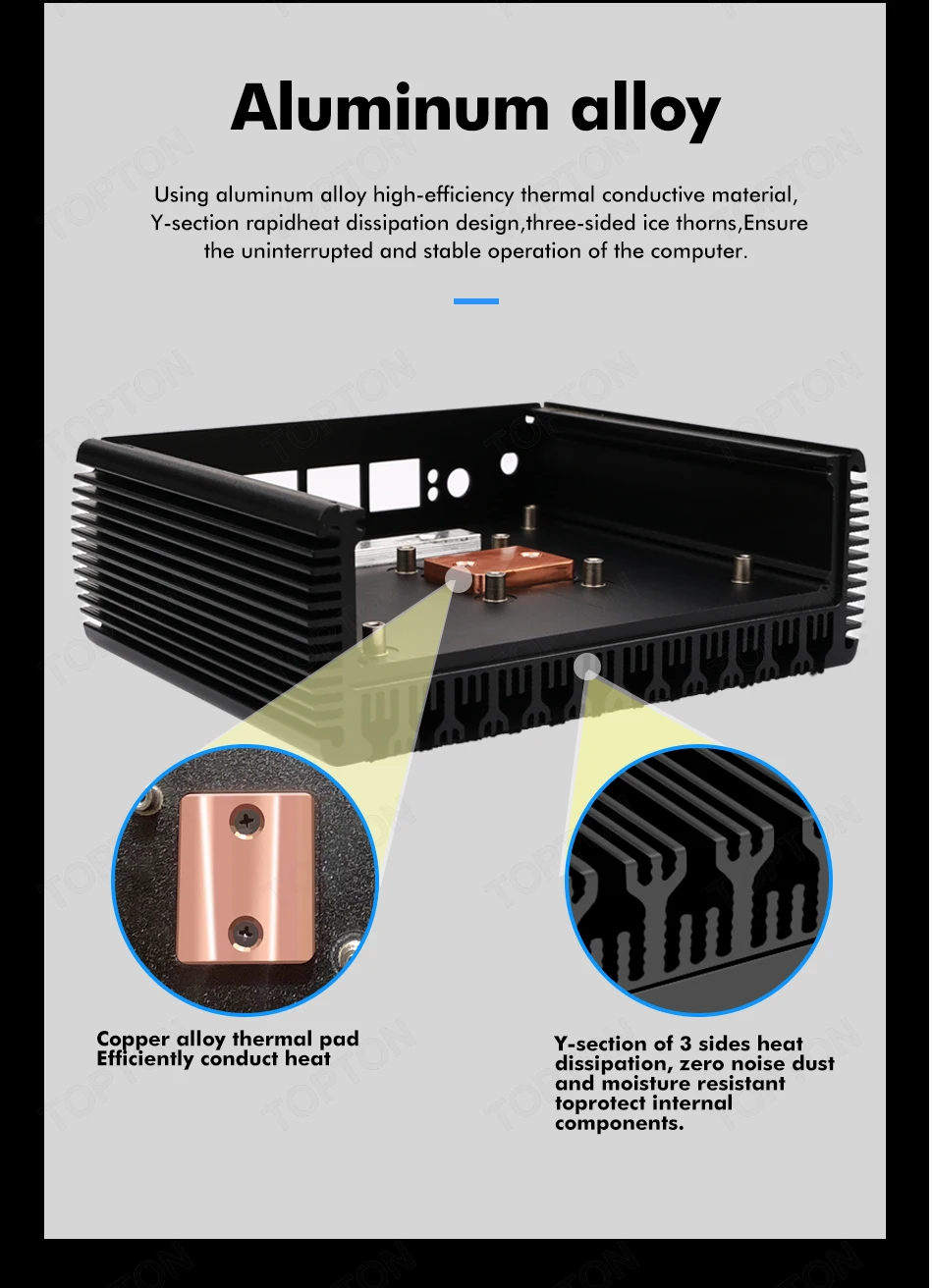

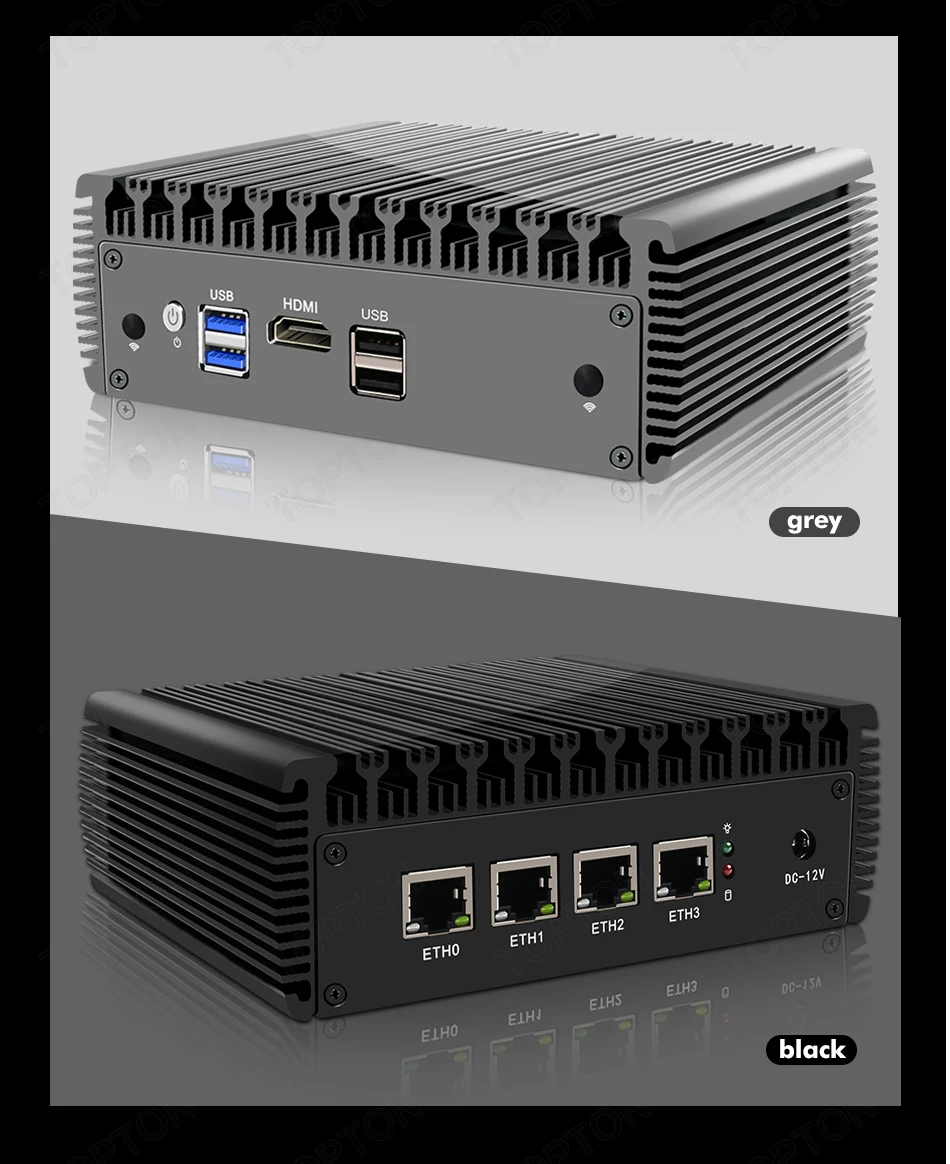

-Full Aluminum Alloy high quality solid-built shell with three-sided ice thorns, excellent cooling performance, Exquisite production craft on outside design.

-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.

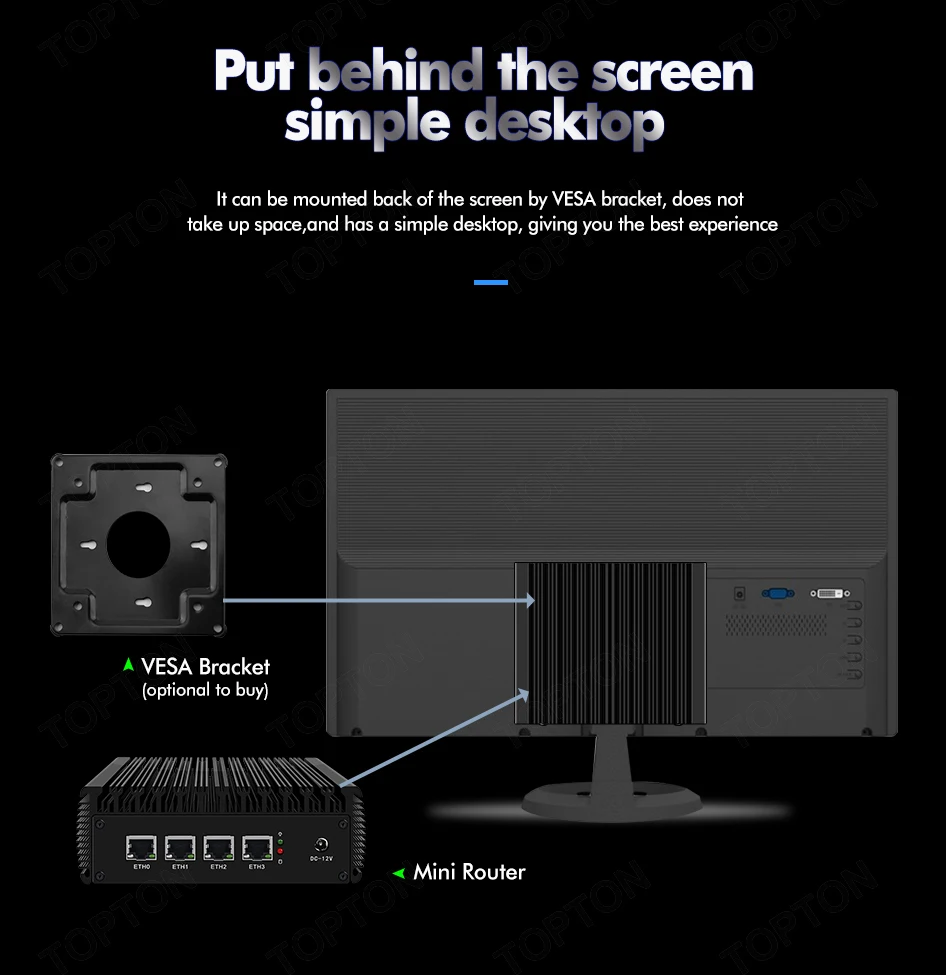

-Low consumption TDP only 10W and can be mounted back of monitor by VESA bracket(optional).

Package List

1xMini PC

1xPower Adapter

1xPower Cord

1xSATA Cable
1xScrews Bag

All bundles on sale DO NOT include WiFi/3G/4G module(antennas), WiFi module cost US $10(only USB protocol), 3G module cost US $50, 4G module cost US $70. If you need, pay atthis link.

DO NOT buy Barebone Mini PC ("No Ram No Storage" bundle)If you are NOT IT hardware technician. PC demands professional skill to assemble and debug. Barebone bundle had best to use Samsung, Skyhynix etc ORIGINAL brand ram and storage. We are afraid to see you suffer a bad shopping experience and DO NOT compensate for buyer's man-made damage and faulty.

Welcome to click the picture of VESA Bracket to order together if you need:

Free Operating System: Default installed pfSense.Other systems we can install free are like Windows, Linux, Ubuntu etc if you need.Seller is irresponsible and makes no compensation for trial system.

500GB 2.5'' HDD add extra 50$, 1TB 2.5'' HDD add extra 65$, 2TB 2.5'' HDD add extra 100$.

Upgrading link:/item/1005002441289552.html

(How many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade 1TB 2.5'' HDD, pay 65pcs for US$65, remember to leave message noting which one you upgrade for...)
