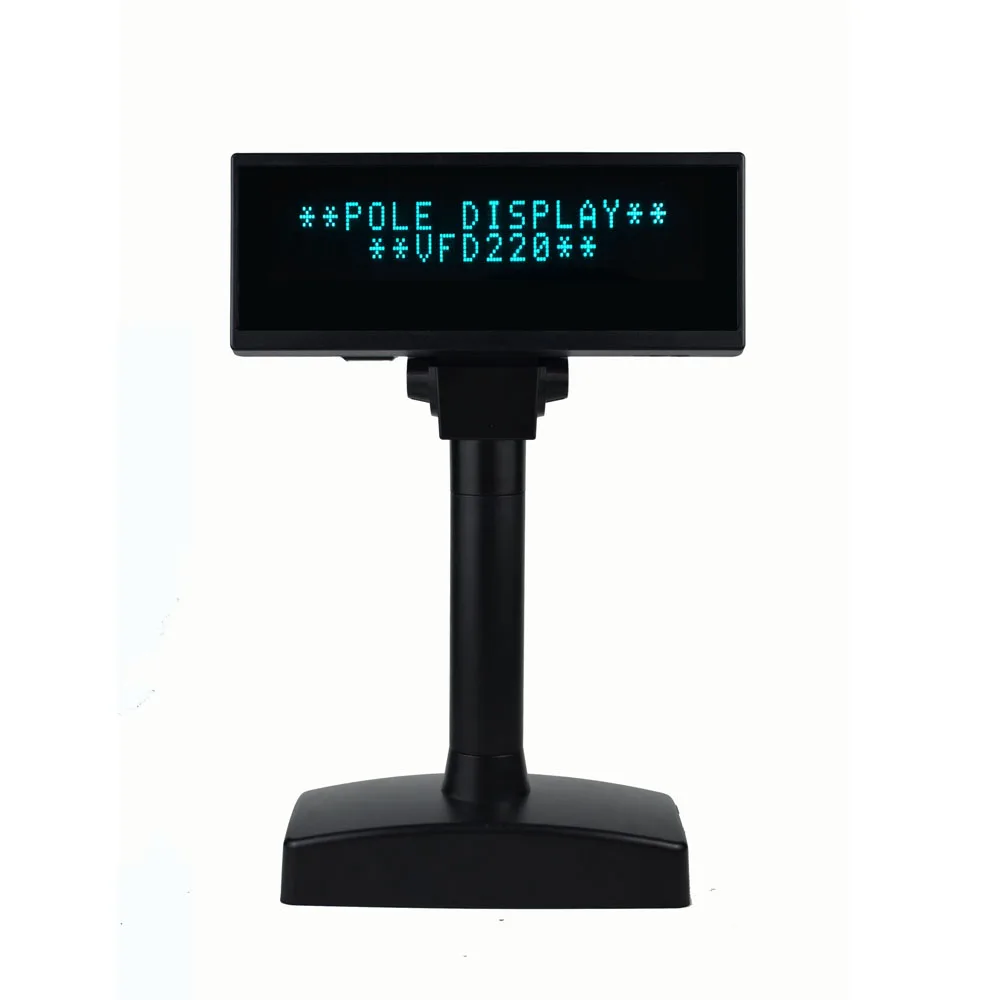

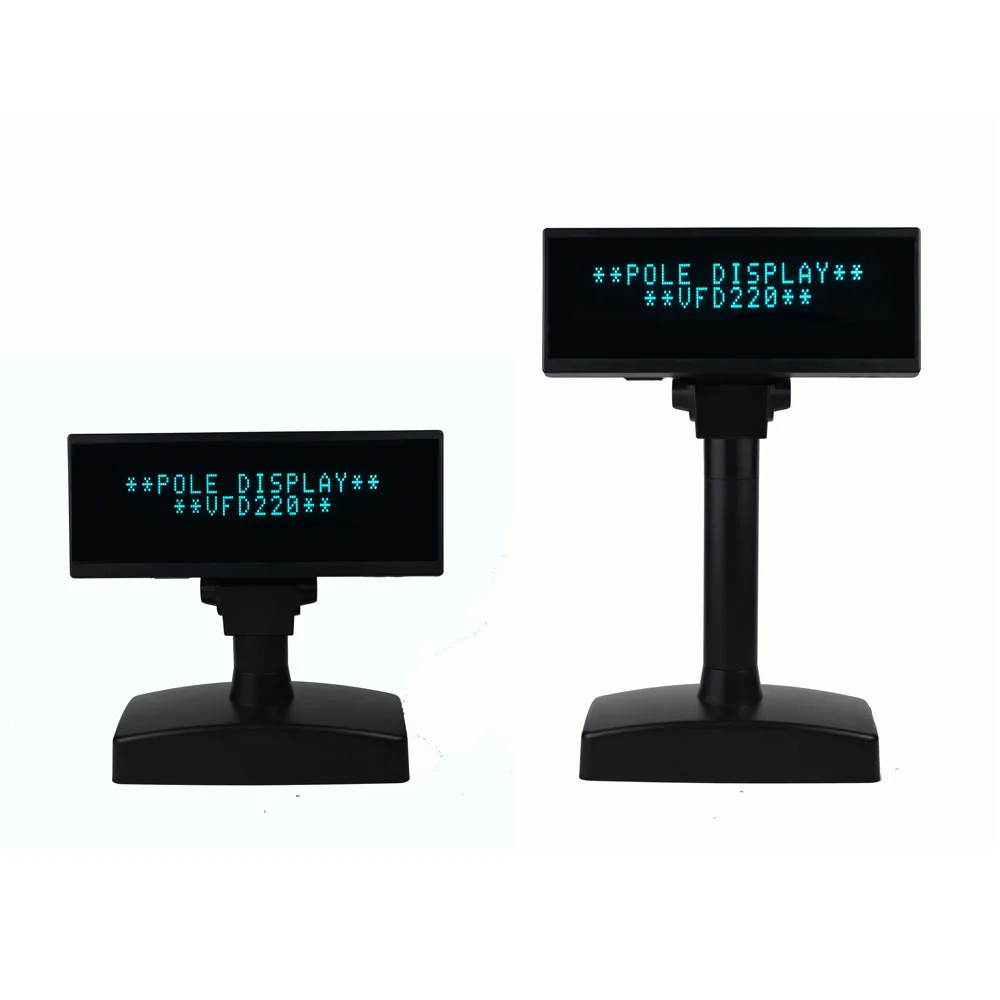

VFD220H-RU RS232 Port Customer Display 20*2 Lines | Компьютеры и офис

VFD220H-RU RS232 Port Customer Display 20*2 Lines | Компьютеры и офис

Pay attention before you place order:

***Above offer for serial interface, USB port supply power. Supports windows, not supports Android.

***We provide driver for Windows.

***Default color is black, Grey-white optional. No message left, we will ship default color.

***For serial or WIFI or Bluetooth interfaces’ power adaptor standard: we will ship adaptor base on buyer’ country standard. For some special adaptor, we will send similar adaptor which also suits for buyer’ country.

***About remote areas: please make sure buyer left correct post code with corresponding city name. If buyer’s address is remote area, please buy a “remote area charge” (/store/product/20170512-Remote-area-extra-delivery-shipping-cost/433898_32810924493.html?spm=2114.12010615.0.0.9dxpqo
) service when place order and leave message to us. If nothing left for a remote area address, we will not ship goods.

***About commercial invoice: If no special request, we will put an invoice with our stamp into your package. If you need the invoice for customer clearance, pls contact our sales by mail.

Link for different interfaces:

Model number

Description

Buying link

VFD220H-U

USB port communicate and supply power, supports windows system

/store/product/VFD220H-U-POS-VFD-Type-and-Indoor-Application-pos-customer-display/433898_32814272175.html?spm=2114.12010615.0.0.eG5LoH

VFD220H-RU

Serial port communicate, USB port supply power, supports windows system

/store/product/VFD220H-RU-High-Quality-POS-Peripheral-VFD-POS-Customer-Display-for-Retail/433898_32814212874.html?spm=2114.12010615.0.0.rHiNPc

VFD220H-RD

Serial port communicate, DC adaptor supply power, supports windows system

/store/product/VFD220H-RD-VFD-pos-customer-display-pole-display/433898_32814244773.html?spm=2114.12010615.0.0.WNbLf9

VFD220H-AU

USB port communicates and supply power, supports windows & Android system; 8859-15 characters set.

/store/product/VFD220H-AU-VFD-customer-display-Factory-Price-Electronic-2-Lines-VFD-Pole-Display-Adjustable-Customer-Display/433898_32814134688.html?spm=2114.12010615.0.0.vPTnFr

VFD220H-BD

Bluetooth port communicate, DC adaptor supply power

/store/product/VFD220H-B-VFD-Customer-Display-Wireless-Bluetooth-10-Meters-Distance-For-Car-Parking/433898_32813457012.html?spm=2114.12010615.0.0.wmTjq6

VFD220H-BU

Bluetooth port communicate, USB port supply power

/store/product/VFD220H-B-2-Line-VFD-POS-Customer-Pole-Display-POS-Peripheral/433898_32816371831.html?spm=2114.12010615.0.0.cwaSYV

VFD220H-WIFID

WIFI port communicate, DC adaptor supply power

/store/product/VFD220H-WIFI-USB-POS-VFD-Customer-Display-Manufacturers/433898_32814236884.html?spm=2114.12010615.0.0.bPzfKe

VFD220H-WIFIU

WIFI port communicate, USB port supply power

/store/product/VFD220H-WIFI-VFD-Customer-display-for-android-tablet-pos/433898_32813421819.html?spm=2114.12010615.0.0.c6lrXv

Features:

1. High brightness green lattice vacuum fluorescent screen display (VFD),can display digital and English (other language optional) characters. Display content is 20 x2 lines.

2. Internal chip electronic industry integration technology, use 1.6 mmFR4 PCB board which is the best in electronic industry. Stable and reliable performance.

3. Compatible with "ESC/POS" standard general instruction set. Do not need any driver, just Turn on and choose the work mode.

4. Power supply by DC 5V or USB port.

5. Display's life can up to 300000 hours. It won't discolor or to be dark. We provide one year warranty.

6. Adjustable shell, comfortable visual angle. Pole height is adjustable

7. We can customize different content and currency according to customers' special needs.

 Application Area: Department store, supermarket, retail stores, restaurant and so on.

8. Compatible with iOS, android, windows and so on.

Specification:

Characters color:

Green fluorescent

Display type:

VFD screen

Characters No.:

20*2 lines;5*7 dot

Brightness:

3000cd/m

Voltage:

5VDC±5%

MTBF:

30000 hours

Max rotation angle:

360deg

Interface:

USB (host 2.0 port)

RS232 (serial port)

Bluetooth (2.4G, communicate distance 5-10 meters)

WIFI ((802.11 b/g/n); Frequency range: 2.412~2.484 GHz; Wireless network protocol: IEEE802.11, TCP/IP; Baud Rate: 2400/9600BPS)

power supply: 5V adaptor

Baud Rate:

2400/9600BPS

Display area:

160mm(W) x 23.8mm(H)

Character size:

high 11mm x wide 7mm

Panel dimensions:

80(H) x 225(W)x37(D)  mm

Support dimensions:

Long support: 480mm  (Contain base)

Short support: 225mm  (Contain base)

Base dimensions: 185(L) mmx95(w)mm x25(H) mm

Pitching move angle:

45°, Can provide comfortable, and adjust the visual Angle

Weight:

1.3Kg  (gross)

Operating Temp:

-20~70 A18

Storage  Temp;

-40~80 A19

Operating Humidity:

10~85%

Storage  Humidity:

10~90%
